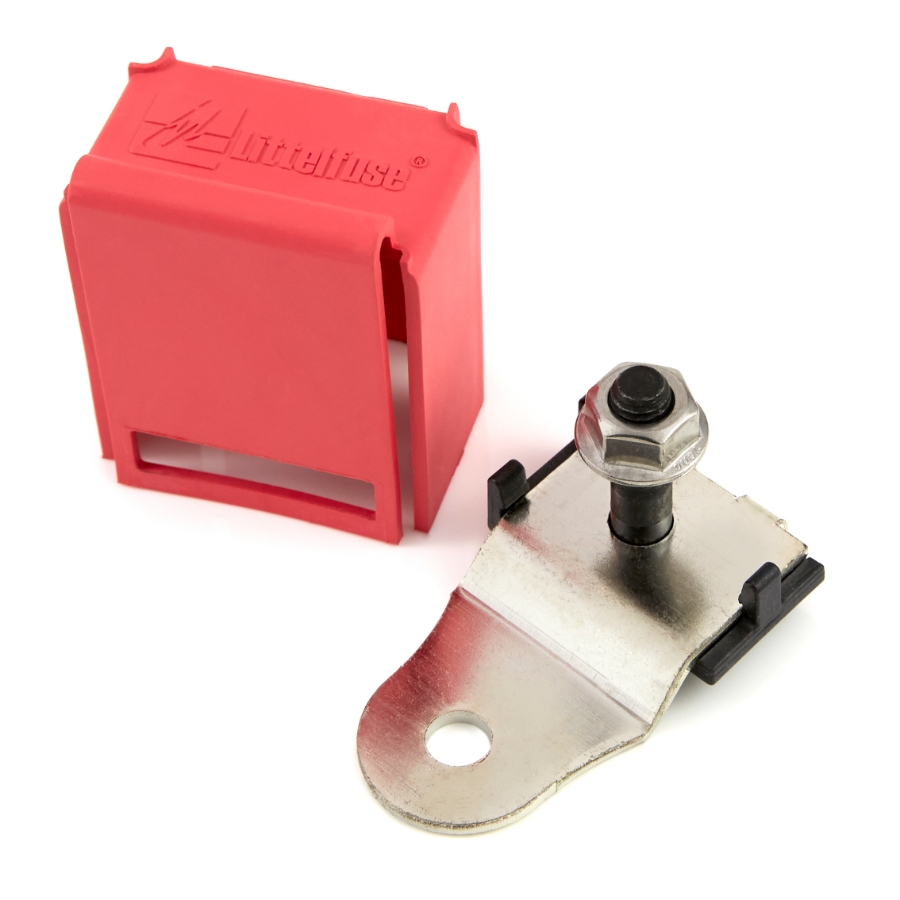

Littelfuse 0FHZ0202Z SMZ Series, M8 Stud Mount ZCASE® Fuse Holder with Fuse Cover, 400A, 80VDC

The SMZ stud mount fuse holder allows you to mount fusing directly to a M8 or M10 stud on applications such as batteries, alternators, battery switches or electrical relays. The insulated bolt on the busbar eliminates the traditional need for nylon nuts used on legacy CF8 fuses.

• Littelfuse 0FHZ0202Z SMZ Series, M8 Stud Mount ZCASE Fuse Holder
• Category: Fuse Holders
• Manufacturer: Littelfuse
• The SMZ stud mount fuse holder features a compact design which saves space and eliminates the need to wire in a separate fuse holder or power distribution module
• Fusing directly on the alternator, battery switch or relay reduces the number of wire connections and parts, which helps to lower assembly time
• High amperage starter circuit protection
• Uses high amp ZCASE fuses
• Tin plate coating on the busbar
• Mounts directly to a M8 stud
• Red protective cover designated to reduce the risk of accidental contact on the fuse or battery terminal
• Volt Rating: 80VDC or Max Rating of the Fuse
• Max. Continuous Current: 400A
• Available Fuse Rating: 40-600A
• Operating temperature: -40°C (-40°F) to 105°C (365°F)
