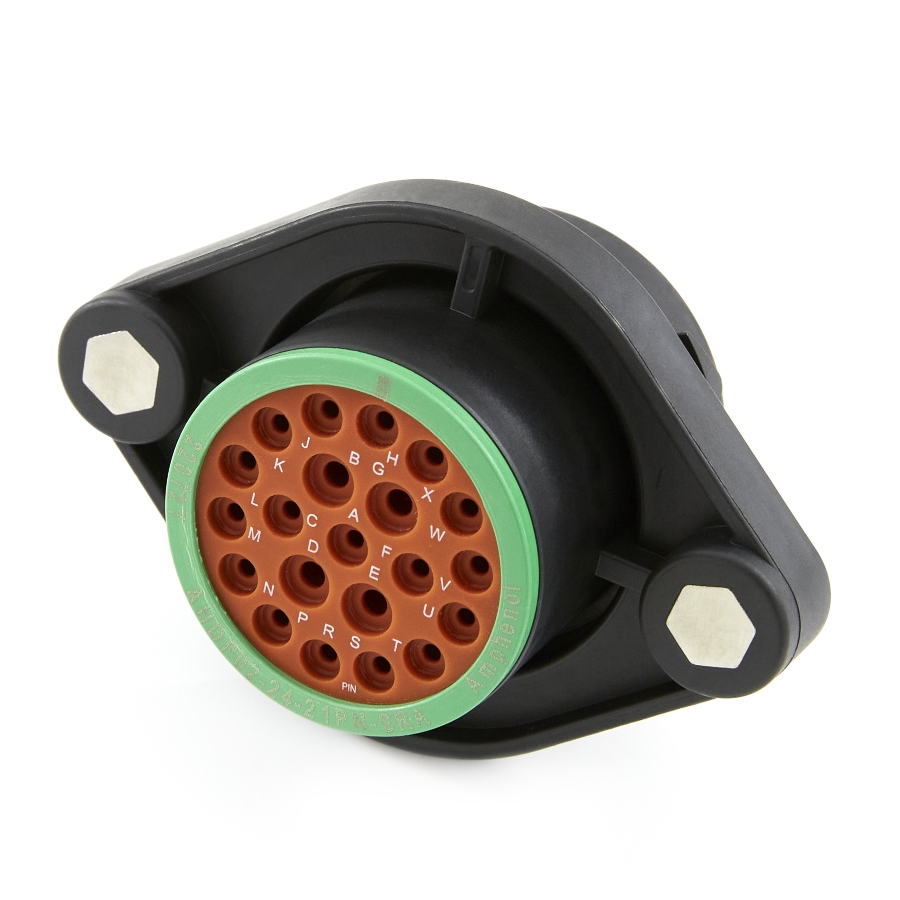

Amphenol Sine Systems AHDP02-24-21PN-SRA DuraMate AHDP Series, 21-Way Panel Mount Receptacle, Pin
Waytek #:39195
Mfr. #:AHDP02-24-21PN-SRA
$13.9800 / EA
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $13.9800 | $13.98 |
| 5 | $13.0500 | $65.25 |
| 10 | $11.7100 | $117.10 |
| 50 | $11.0400 | $552.00 |
| 100 | $10.1000 | $1,010.00 |
| 200 | $9.5000 | $1,900.00 |
Price Break per EA
| Qty | Ea. Price | Ext. Price |
|---|---|---|
| 1 | $13.9800 | $13.98 |
| 5 | $13.0500 | $65.25 |
Min. Order Qty: 1 |
Availability: 0 in Stock |
Standard Lead Time When No Stock: 140 days |
- The DuraMate AHDP environmentally-sealed, multi-pin, heavy duty, plastic, circular connector series provides an economical quick-connect bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications.
- Amphenol Sine Systems AHDP02-24-21PN-SRA DuraMate AHDP Series
- Category: Amphenol AHDP Connectors
- Manufacturer: Amphenol Sine Systems
- Number of Pins: 21
- Environmentally-sealed rapid and secured mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
- Amphenol AHDP Series circular connectors contain an economical, quick-connect, bayonet locking system to help ensure proper mating
- Manufactured to withstand the challenges and complexities of harsh-environments
- Provides a high density of signal and mixed power in a compact connector system
- Utilizes A Series standard contact system (Stamped & Formed or Machined)
- Accepts (17) Size 16 Contacts, (4) Size 12 Contacts
- Operating Temperature Range: -55°C to 125°C
- Current Rating: 13 Amps, 25 Amps
- Shell Size: Size 24
- Mating Connector: AHDP06-24-21S* | Waytek # 39198
- Modifications: Sealed Panel Mount, Standard Wire Seal, Smooth Ring Adapter
- Ratchet Hand Crimp Tool: 40104
- Contact Removal Tool: 632
Manufacturer : Amphenol Sine Systems
Number of Circuits: 21 Circuit
Component Type: Receptacle Housing
Wire Gauge: 20-10 Gauge
