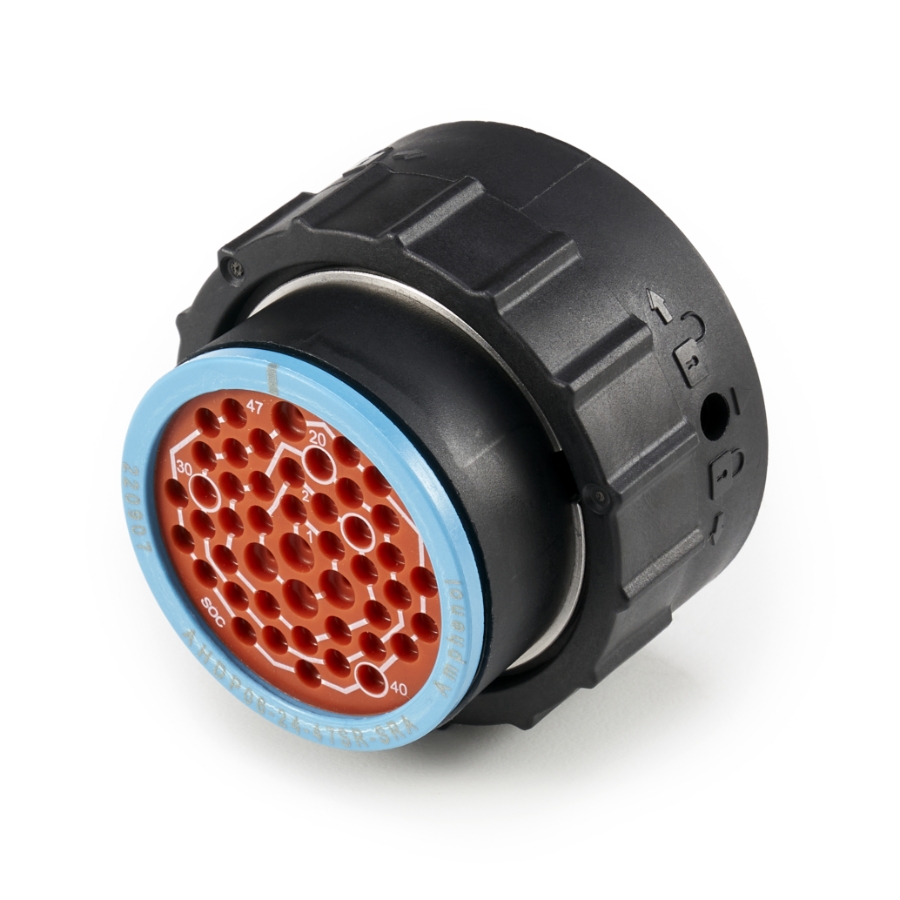

Amphenol Sine Systems AHDP06-24-47SR-SRA, DuraMate AHDP Series, 47-Way Plug, Socket, Shell Size 24

The DuraMate AHDP environmentally-sealed, multi-pin, heavy duty, plastic, circular connector series provides an economical quick-connect bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications.

• Amphenol Sine Systems AHDP06-24-47SR-SRA, DuraMate AHDP Series
• Category: Amphenol AHDP Connectors
• Manufacturer: Amphenol Sine Systems
• Component Type: Plug Housing
• Wire Gauge: 22-14 Ga.
• Number of Circuits: 47 Circuit
• Deutsch Part # HDP26-24-47SE
• Series: AHDP
• Number of Pins: 47
• Environmentally sealed rapid and secured mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud, and other contaminants and is vibration resistant
• Amphenol AHDP Series circular connectors contain an economical quick-connect bayonet locking system to help ensure proper mating
• Manufactured to withstand the challenges and complexities of harsh environments
• Provides a high density of signal and mixed power in a compact connector system
• Utilizes A Series standard contact system (stamped & formed or machined)
• Accepts (5) Size 16 Contacts, (42) Size 20 Contacts
• Operating Temperature Range: -67°F to (-55°C) to 257°F (125°C)
• Current Rating: 13A , 7.5A
• Shell Size: Size 24
• Mating Connector: AHDP04-24-47P* | Waytek # 39211 (*Rear seal type and other mating connection modifications are available; see product data sheet for more information)
• Modifications: Reduced wire seal, smooth ring adapter
• Ratchet Hand Crimp Tool: 40104
• Contact Removal Tool: 632
