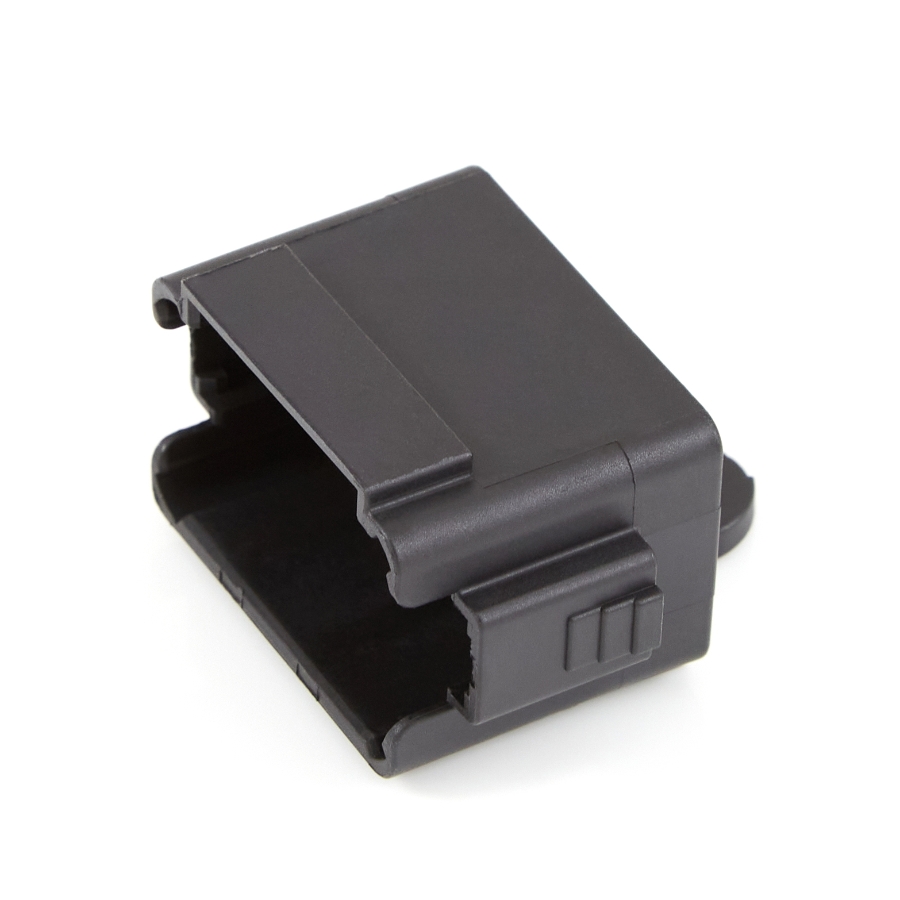

Amphenol Sine Systems AT06-12S-CAP 12-Way Connector Plug, AT Dust Cap, Black

A Series Caps are a low-cost alternative to using standard connectors with sealing plugs and provide an optional protective covering for harsh environmental and industrial applications. All caps are IP68 rated (1m of water for 24 hours).

• Amphenol Sine Systems AT06-12S-CAP 12-Way Connector Plug
• Category: Amphenol AT Series™ Connectors
• Manufacturer: Amphenol Sine Systems
• Series: AT
• Number of Pins: 12
• Operating Temperature Range: -67°F (-55°C) to 257°F (125°C)
• Meets or exceeds 1500VDC
• High-performance, cost effective alternative to Deutsch DTM connectors
• Integral latching system on connectors ensure definitive electrical and mechanical connection
• Thermoplastic, UV resistant connector housings
• Exceptional dielectric and mechanical properties
• Multi-sealing perimeter with internal and rear silicone
• Ingress Protection Rating: IP68 (in mated condition)
• Silicone elastomer seals on plug and receptacle connector housings
• Mating Connector: 38181
